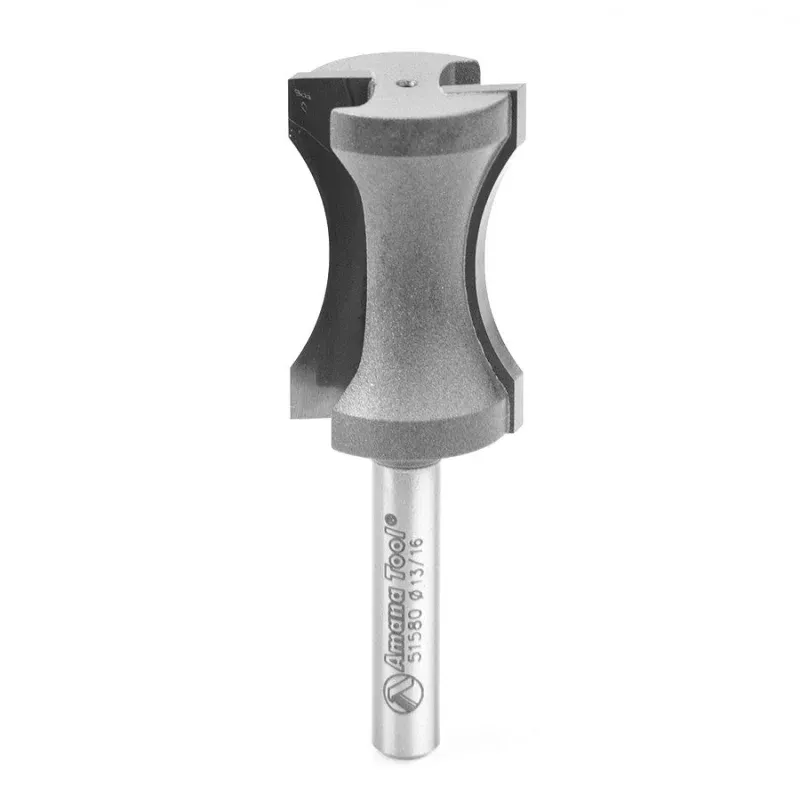

51580, Amana Carbide Tipped Convex Edging 23/32 Radius x 13/16 Dia x 1-1/4 x 1/4 Inch Shank
Cuts a shallow arc – the fingernail shape – rather than a full 180-degree roundover. Like the bullnose radius bit, it has short flats above and below the cutter arc, which produce fillets on stock thicker than 7/8″. Must be used with an edge guide on handheld routers, or the fence on a router table.
Features:
- High quality long lasting European sub-micrograin & micrograin carbide
- Thick carbide for multiple resharpenings
- Different carbide grades for different materials
- Silver induction brazing for maximum carbide bonding strength
- Produced according to Holz-BG German standards for safety and quality
- Centerless ground shank for exact fit
- Multi axis grinding
- Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
- Use of only solid bar stock steel (brazed bits)
- Shanks laser etched with size, maximum RPM ratings and clamping depth
- *All router bits are carbide-tipped unless stated otherwise.**
Specifications:
- Tool No. 51580
- Diameter (D) 13/16
- Radius (R) 23/32
- Cutting Height (B) 1-1/4
- Shank (d) 1/4
- Overall Length (L) 2-1/2
- B1 27/32
- Flutes 2
