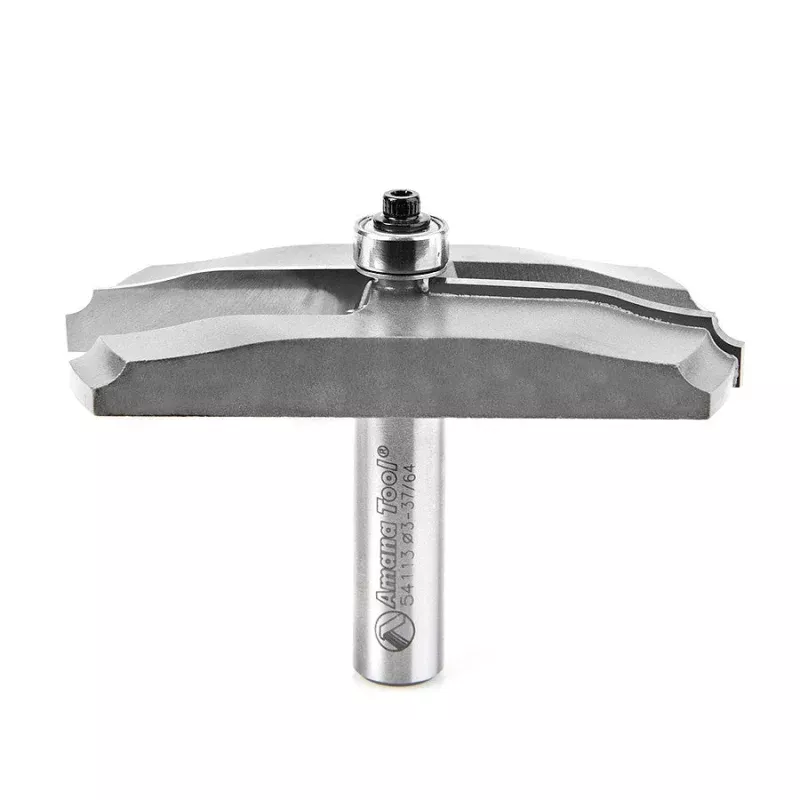

54113, Amana Carbide Tipped Classical Raised Panel 5/32 Radius x 3-9/16 Dia x 1/2 x 1/2 Inch Shank
Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended.
Specifications:
- Tool No. 54113
- Diameter (D) 3-9/16
- Cut Depth (A) 1-17/32
- Radius (R) 5/32
- Cutting Height (B) 1/2
- Shank (d) 1/2
- Overall Length (L) 2-43/64
- Replacement Bearing 47706
- R1 1-23/32
- Flutes 2
