No Touch Switch, Dual Color LED
The NTS No Touch Request to Exit Station uses infrared sensors to reliably allow safe egress or to activate a device with the simple hand presentation. Designed to reduce the risk of contamination for sensitive applications including: bathrooms, hospitals, labs, schools and offices.
Features
Standard:
- Stainless steel with vandal resistant face plate
- Sensor detection range up to 4″
- Bi-color Halo LED status indicators
- Plate screened “Wave To Open”
- Time delay settable for 1 to 35 seconds
Options:

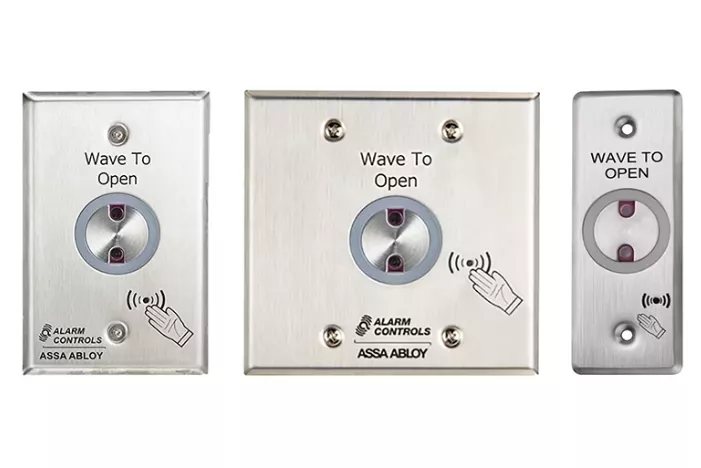

- NTS-1 with single gang wall plate
- NTS-2 with double gang wall plate
- NTS-3 with narrow stile wall plate
Specifications
Electrical:
- SPDT relay rated 2A at 30 VDC/VAC
- Operates on 12VDC or 24 VDC
Operating Temperature:
- -13 to + 131 F (-25 to 55 C)
