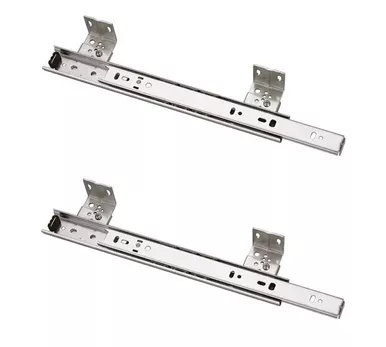

Accuride 2109 Light-Duty Slide Key Board Slides with Lever-Disconnect for Suspended Mounting
No need to suspend your disbelief for this motion hardware. Equipped with a lever-disconnect and variable height mounting brackets, the 2109 model is perfect for light-duty cabinetry, keyboard trays, and pencil drawers.
Supports loads up to 75 lbs.
For drawers up to 16” wide
For additional technical information see below
Backed by BHMA and AWI certification, this savvy solution provides a cushion of suspension to your hardware, matched with the practicality of a hold-in and hold-out detent for effective, long-term use in workspaces abound.
Specifications:
¾-extension
Load Rating: 75 lbs.
BHMA and AWI Certified
.50″ side-space
Lever-disconnect
Steel ball bearings
Even lengths 12″—28″
Clear zinc or black finish
RoHS-compliant
Features:
Hold-in and hold-out detent
Variable height mounting brackets
Flexibility of inboard or outboard bracket mounting
2109 Technical Sheet
2109 Clip-On Bracket Technical Sheet
