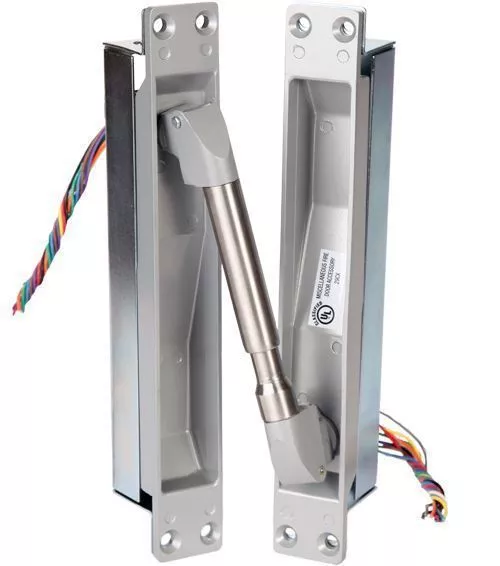

| PT1000 | (10) 24 AWG Wires | Max. Rating: 24 VDC, 1A |
| PT200 | (2) 18 AWG Wires | Max. Rating: 24 VDC, 5A or 120 VAC NEC Class |
- Features:
- PT1000 & PT200 provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner.
- Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
- All metal construction including backboxes – NO PLASTIC PARTS
- Ideal for high abuse or heavy traffic situations
- UL/ULC Listed for use on fire doors
- Packaged individually with fasteners for wood, steel, or aluminum doors and frames
- Approximate shipping weight: 3 lbs.
- Patent Pending
- Matches competitor’s door and frame prep
- Standard Applications:
- 1-3/4″ Door thickness
- Cam lift hinges (up to 1/2″ lift) – allowing for 180° door swing
- Butt hinges up to 5″ – allowing for 180° door swing
- 5-1/2″ butt hinges – allowing for 130° door swing
- 6″ butt hinges – allowing for 110° doo swing
- Up to 3/4″ offset pivots allowing for 180° door swing
- Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6″, 1-1/2″ offset pivots or center hung doors
- Average weight per unit = 2 lbs
-
Cut Sheets
- Power Transfer Cut Sheet
