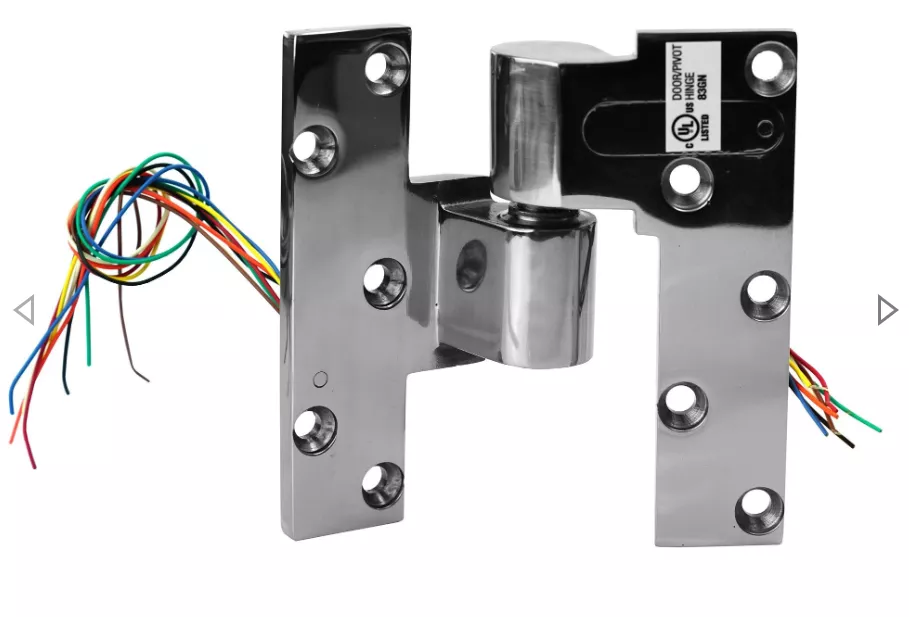

ABH EL019 Intermediate Pivot Lead-Lined – Electrified – 3/4″ Offset

• Features:
  • Provides electrical power transfer from the frame to the door
    • (8) 30 AWG Wires
  • Mortises into side jamb and hinge edge of door
  • Handed – Specify LH or RH
  • For use with 3/4″ offset lead-lined pivot sets
  • 1-3/4″ lead – lined doors
  • Helps maintain door alignment
  • UL Listed for use on 3-hour fire rated doors – Standard
  • Heavy duty stainless steel needle bearings
  • Stainless steel base material
  • Average weight per unit = 3 lbs

• “EXT-SPIN” Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
•  “EXT-PIN” Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
•  “EZ” Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
•  “SEC” Fasteners

Cut Sheets

•  EL019 Cut Sheet – Electrified 3/4″ Offset lead-Lined Intermediate Pivot
•  Pivot Set Configurations
