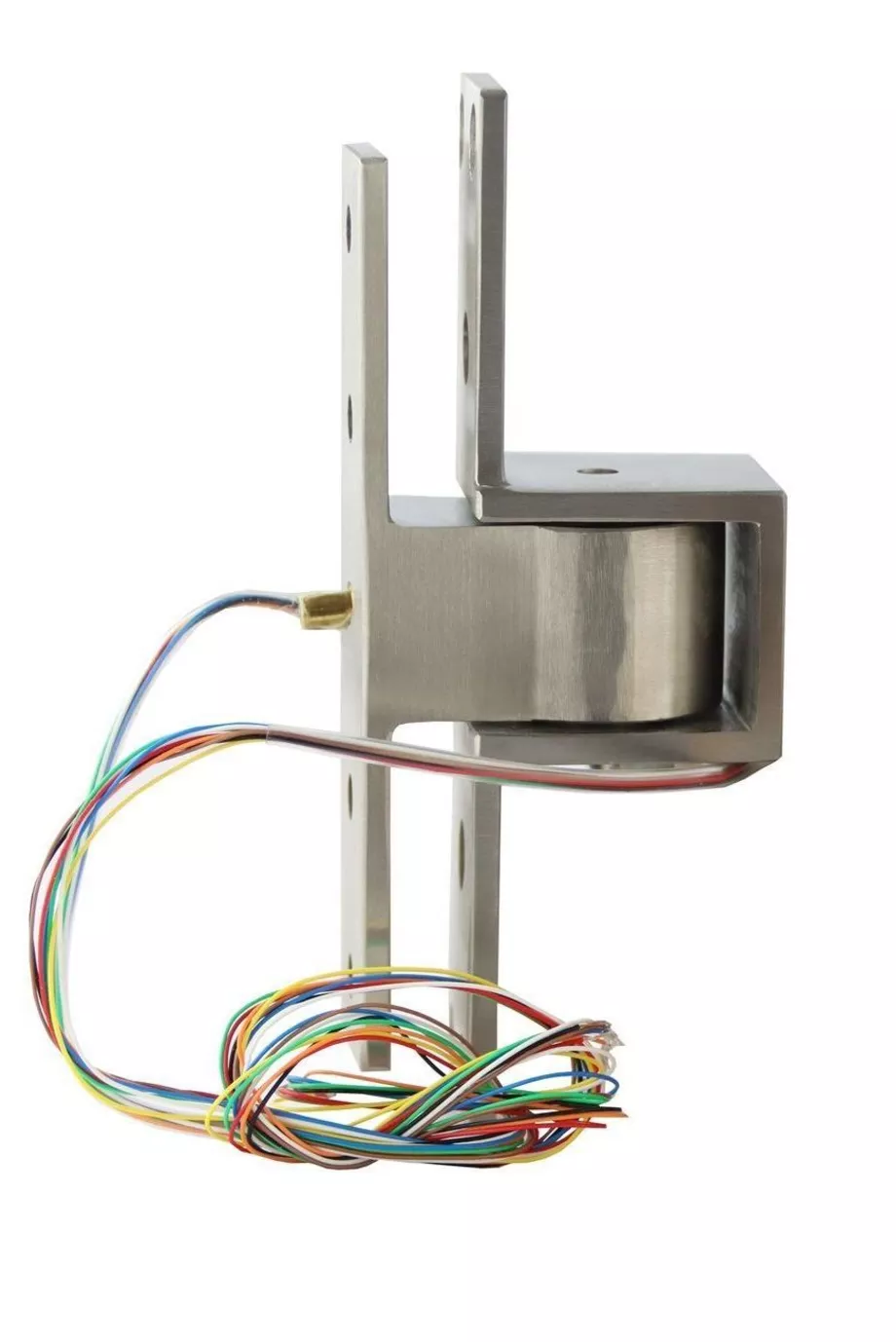

ABH E0519 Electrified Pocket Pivot

• Features:
  • Pivot point is located inside the frame
  • Allows door to swing into a pocket in the frame at a right angle
  • When the door is in the pocket, it is completely clear of the door opening and flush with adjacent wall
  • Maximum door swing is 90°
  • Minimum three pocket pivots per door 60″ – 90″ tall
  • Add one pocket pivot for each additional 30″ door height
  • Maximum door load per pivot – 90 pounds
  • Non-handed
  • UL listed for use on 3-hour fire rated hollow metal doors (20 minutes on wood core doors) – Standard
  • Heavy duty stainless steel needle bearings
  • Stainless steel base material
  • Average weight per unit = 3 lbs

•  “EXT-SPIN” Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
•  “EXT-PIN” Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
•  “EZ” Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
•  “SEC” Fasteners

Cut Sheets

•  E0519 Electrified Pocket Pivot
•  Pivot Set Configurations
