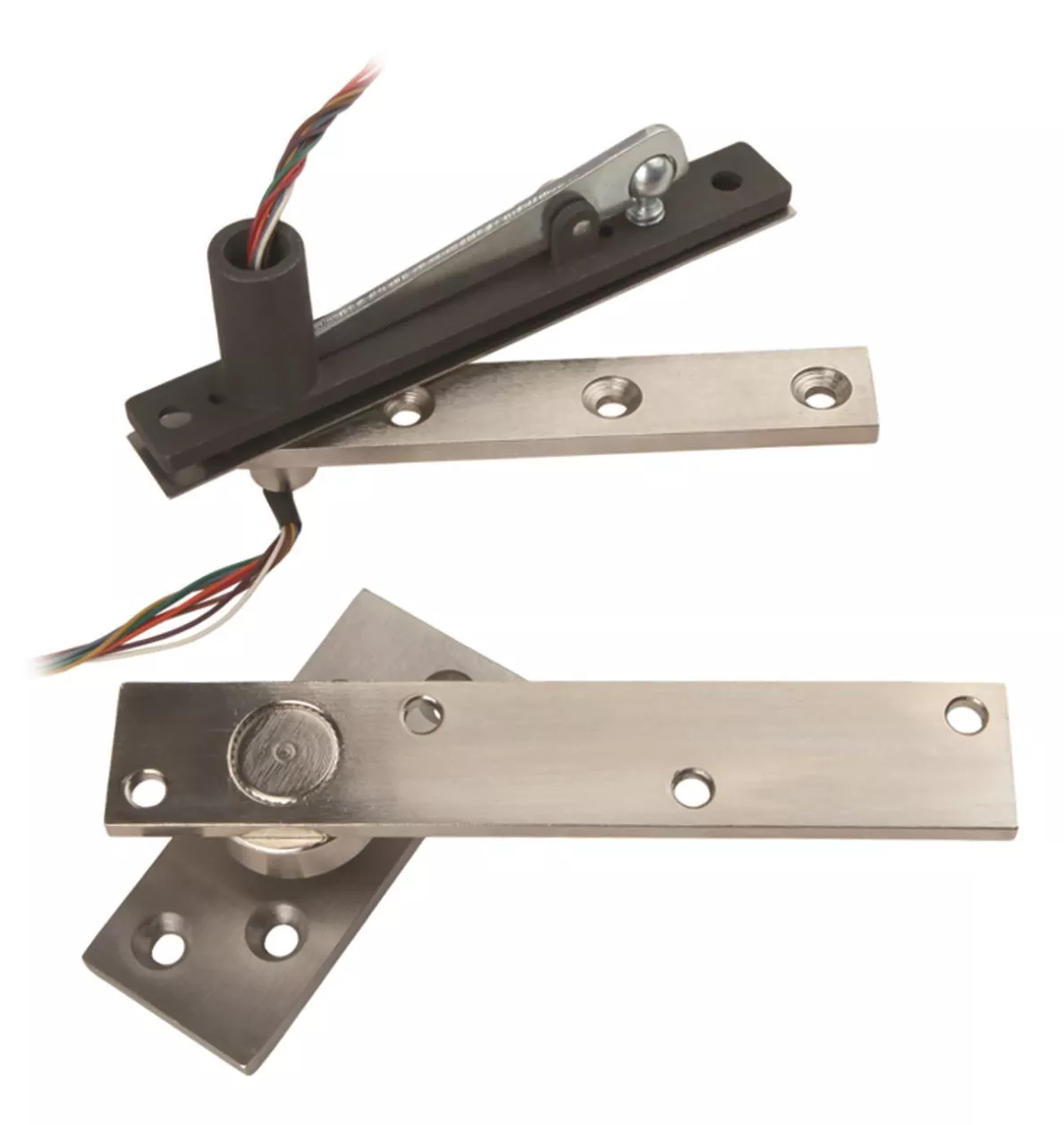

ABH E0370 Electrified Pivot Set – Center Hung

• Features:
  • Non-Handed
  • Pivot set is centered into the door thickness
  • Maximum door load 500 lbs.
  • Maximum door size – 44″ x 102″
  • Average weight per unit = 4 lbs
• Includes:
  • E0340 Top Pivot
    • Frame leaf mortises into header
    • Door leaf mortises into top of door
    • Provides electrical power transfer from the frame to the door
    • (8) 30 AWG Wires
  • 0370 Bottom Pivot
    • Bottom leaf mounts on top of finished floor
    • Door leaf mortises into bottom of door

•  “EXT-SPIN” Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
•  “EXT-PIN” Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
•  “EZ” Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
•  “SEC” Fasteners

Cut Sheets

•  E0370 Center Hung Top and Bottom Pivot Set with Electrified E0340 Top Pivot, Heavy Duty
•  Pivot Set Configurations
