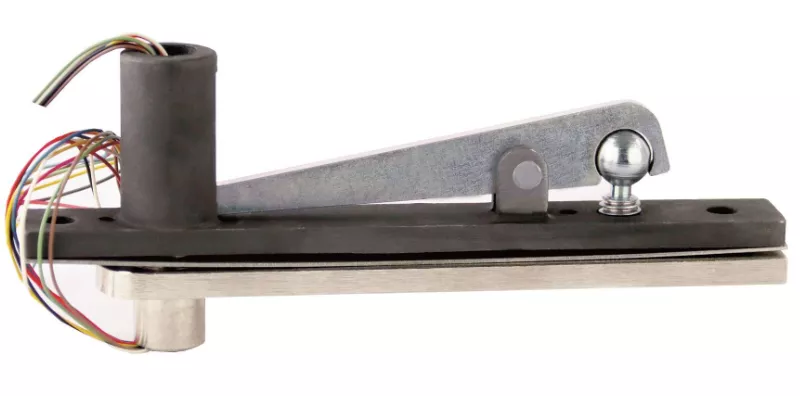

ABH E0320 Electrified Top Pivot – Center Hung

• Features:
  • Provides electrical power transfer from the frame to the door
    • (8) 30 AWG Wires
  • Medium Duty
  • Mortises into header and top of the door
  • Dress plate provided for jamb portion
  • Non-Handed
  • Average weight per unit = 2.25 lbs

•  “EXT-SPIN” Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
•  “EXT-PIN” Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
•  “EZ” Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
•  “SEC” Fasteners

Cut Sheets

•  E0320 Electrified Center Hung Top Pivot, Medium Duty
•  Pivot Set Configurations
