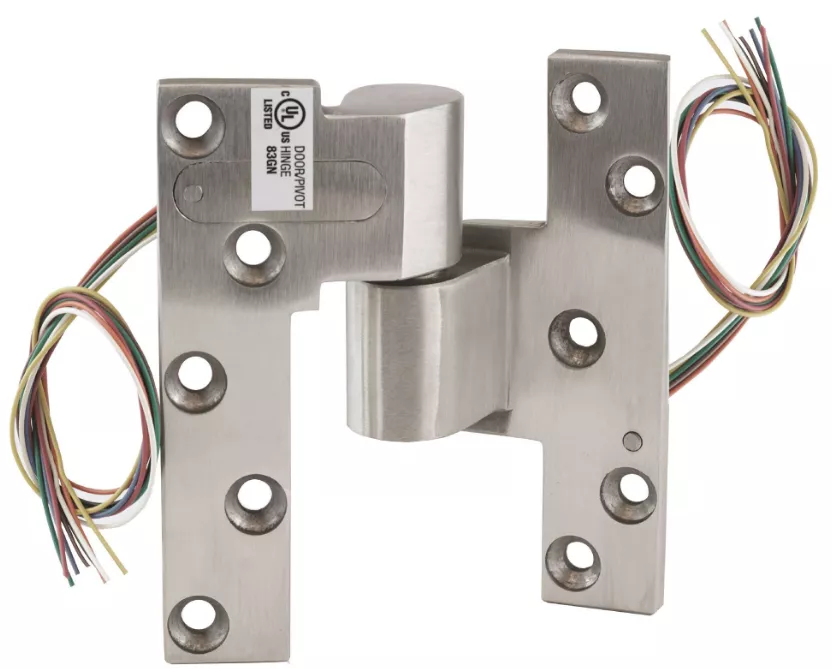

ABH CME019 Intermediate Pivot – Electrified – 3/4″ Offset

• Features:
  • Provides electrical power transfer from the frame to the door
  • (8) 30 AWG Wires
  • Concealed door position monitor switch included
  • Mortises into side jamb and hinge edge of door
  • Handed – Specify LH or RH
  • UL listed for  use on 3-hour fire rated doors
  • Heavy duty stainless steel needle bearings
  • Stainless steel base material

•  “EXT-SPIN” Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
•  “EXT-PIN” Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
•  “EZ” Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
•  “SEC” Fasteners

Cut Sheets

•  CME019 Cut Sheet – Electrified 3/4″ Offset Intermediate Pivot
•  Pivot Set Configurations
