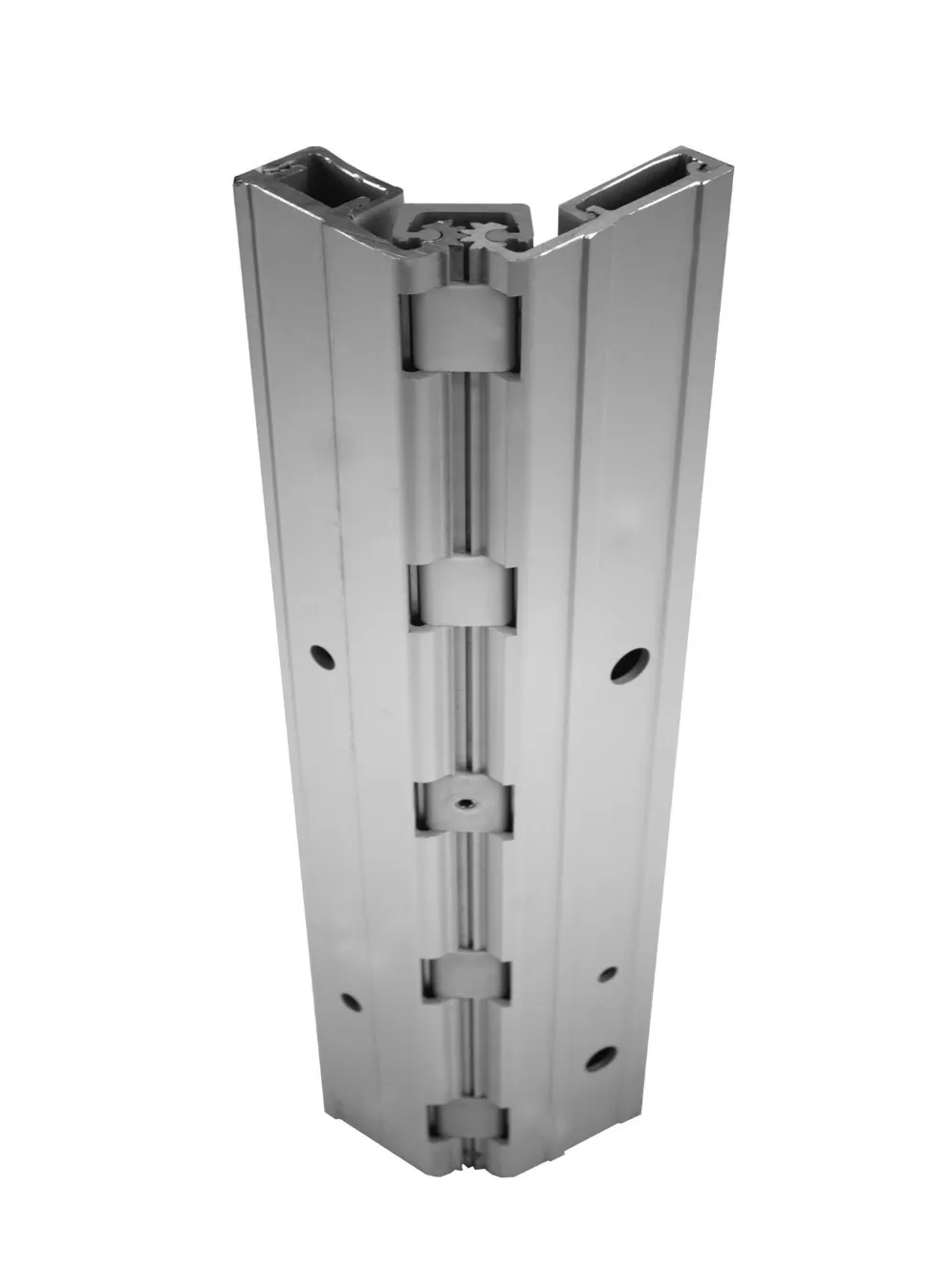

Name: ABH A570HD Aluminum Continuous Gear Hinges Full Surface
Brand: goodfixhardwareus.com
SKU: A570HD-C079
Price: 24.16 USD
Availability: InStock

BHMA Grade 1
Full Surface, Heavy Duty
1/16″ Door Inset
For narrow-faced frames
48″ door width maximum
450 lbs. door weight maximum
Average weight per unit = 11 lbs
Fasteners:
12-24 X 1″ Phillips Pan Head, Self Drilling, Thread Forming Tek Machine Screw 1/4-20 x 1-1/4″ x 3/8 Dia. Sex Bolts and 1/4-20 x 1-1/4″ PH. Head Shoulder Bolts for door
Standard Lengths:
79″, 83″, 85″, 95″ and 120″ + Custom Sizes Available
Fire Rating:
- Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy “FR” option for 3 hour rating)
- Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specifiy “FR” option for 90 minute rating)
Reinforcement:
- Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
- Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.

“A570TW2” Removable Section with (2) 22 AWG Super-Flex Wires for Concealed Electrification on A570 Full Surface Hinge Only
“FR” Fire Studs
“WEDGE-FS” Adjustable Safety Wedge for Full Surface Models
“AHT-FS” Advanced Hospital Tip for Full Surface Ligature-Resistant Applications (Specify Handing)
“LR-BEAR” Ligature-Resistant Bearings
“DD” Dutch Door Prep
“SEC” Fasteners
“CUT” Cut to Custom Length
“TR” Tamper-Resistant (Hospital Tip, Every Other Bearing has a Set Screw) & Security Fasteners (Specify Door & Frame Material)
“TR-AHT-FS” Tamper-Resistant (Advanced Hospital Tip, Every Other Bearing has a Set Screw) & Security Fasteners (Specify Door & Frame Material) for Half/Full Surface
“SC” School Cap
“SPLICE” Spliced Hinge
“LL” Lead-Lined Cover (Half Surface & Full Surface – Door Leaf Only)
“SL” – Sheared Leaf
“THICK” Special Door Thickness
“CUSTOM HOLE” Custom hole locations
“CUSTOM FINISH”
