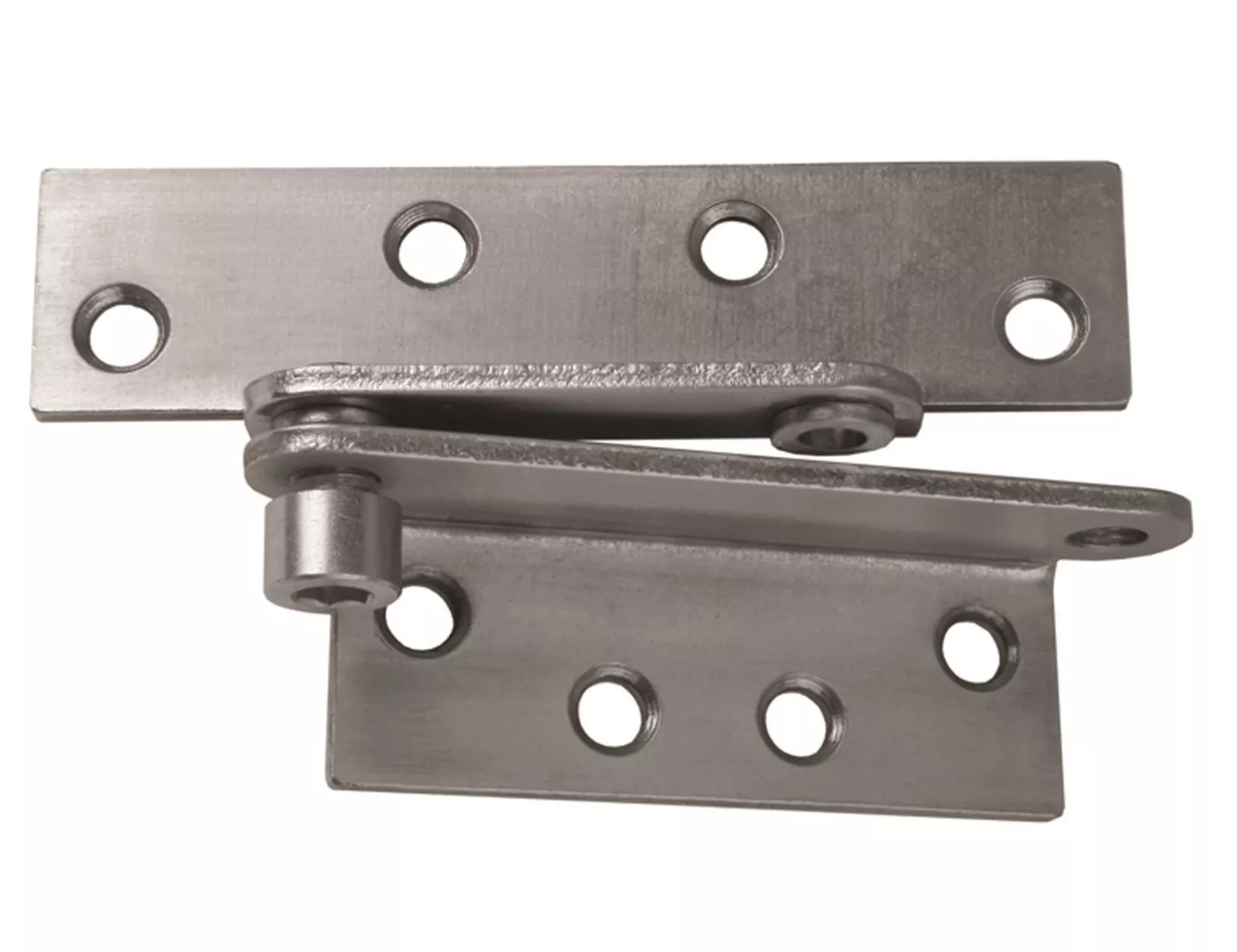

- Features:
- Helps take load off failing top hinge and eliminate door sag
- Surface mounts to the face of the frame header and face of the door
- Matches pivot point of a standard 4-1/2″ butt hinge
- Non-handed
- Maximum door load – 300 pounds
- Cold-rolled steel, zinc plated – US2G finish
- For 1/8″ inset door with 3/4″ offset
- Average weight per unit = 2 lbs
- “SEC” Fasteners
Cut Sheets
- 0547 & 0923 Pivot Set – 3/4″ Offset
- Pivot Set Configurations
