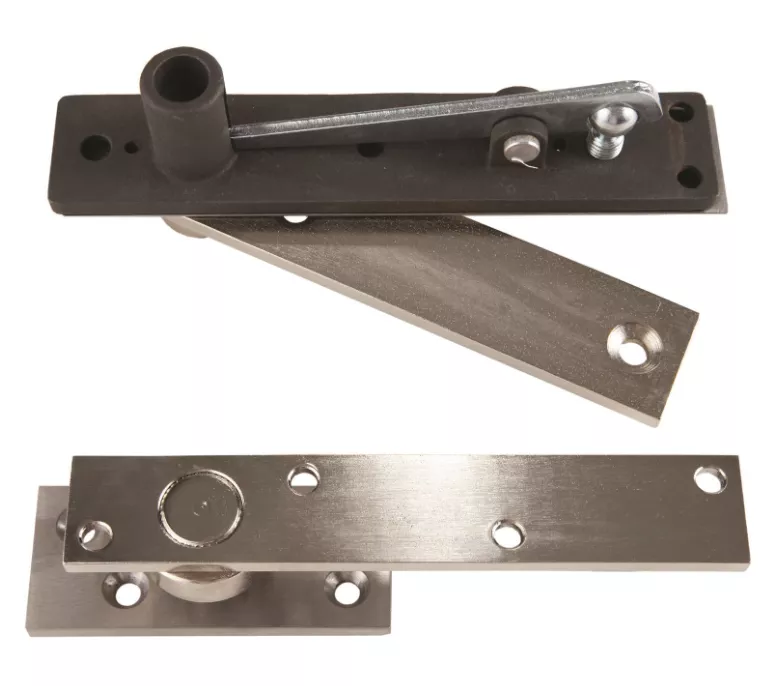

ABH 0370 Pivot Set – Center Hung

• Features:
  • Non-Handed
  • Pivot set is centered into the door thickness
  • Maximum door load 500 lbs.
  • Maximum door size – 42″ x 102″
  • Average weight per unit = 3.5 lbs
• Includes:
  • 0340 Top Pivot
    • Frame leaf mortises into header
    • Door leaf mortises into top of door
  • 0370 Bottom Pivot
    • Bottom leaf mounts on top of finished floor
    • Door leaf mortises into bottom of door

•  “EXT-SPIN” Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
•  “EXT-PIN” Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
•  “SEC” Fasteners

Cut Sheets

•  0370 Center Hung Top and Bottom Pivot Set, Heavy Duty
•  Pivot Set Configurations
