- Features:

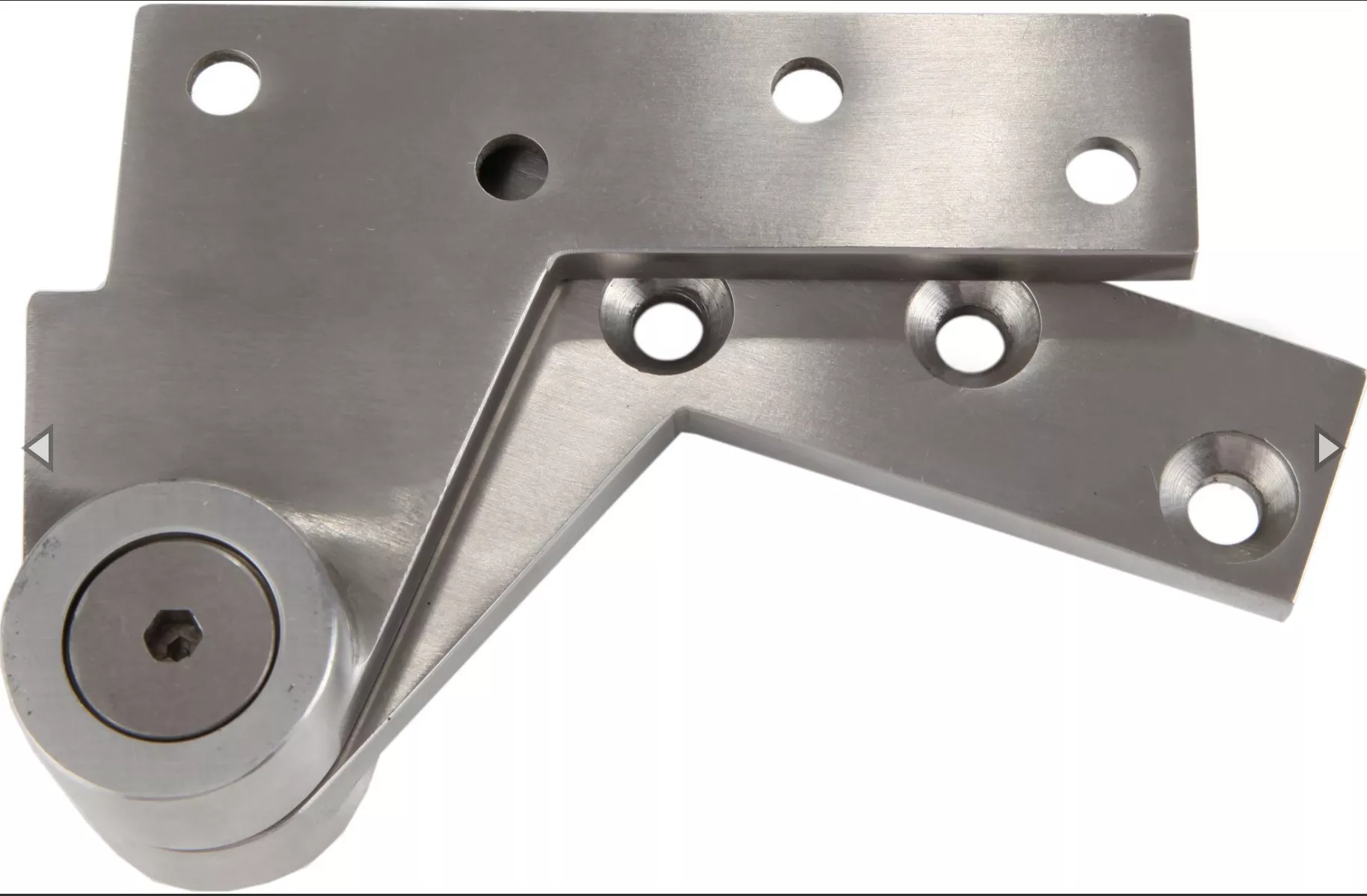

- Top Pivot for 1-1/2″ offset bottom pivot or floor closer
- Mortises into header and top of door
- Non-handed
- UL listed for use on 3-hour fire rated doors – Standard
- Heavy Duty stainless steel needle bearings
- Stainless Steel base material
- Average weight per unit = 2.25 lbs
- “EXT-PIN” Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
- “SEC” Fasteners
Cut Sheets
- 0180-1.5 Cut Sheet – 1-1/2″ Offset Top Pivot
- Pivot Set Configurations
