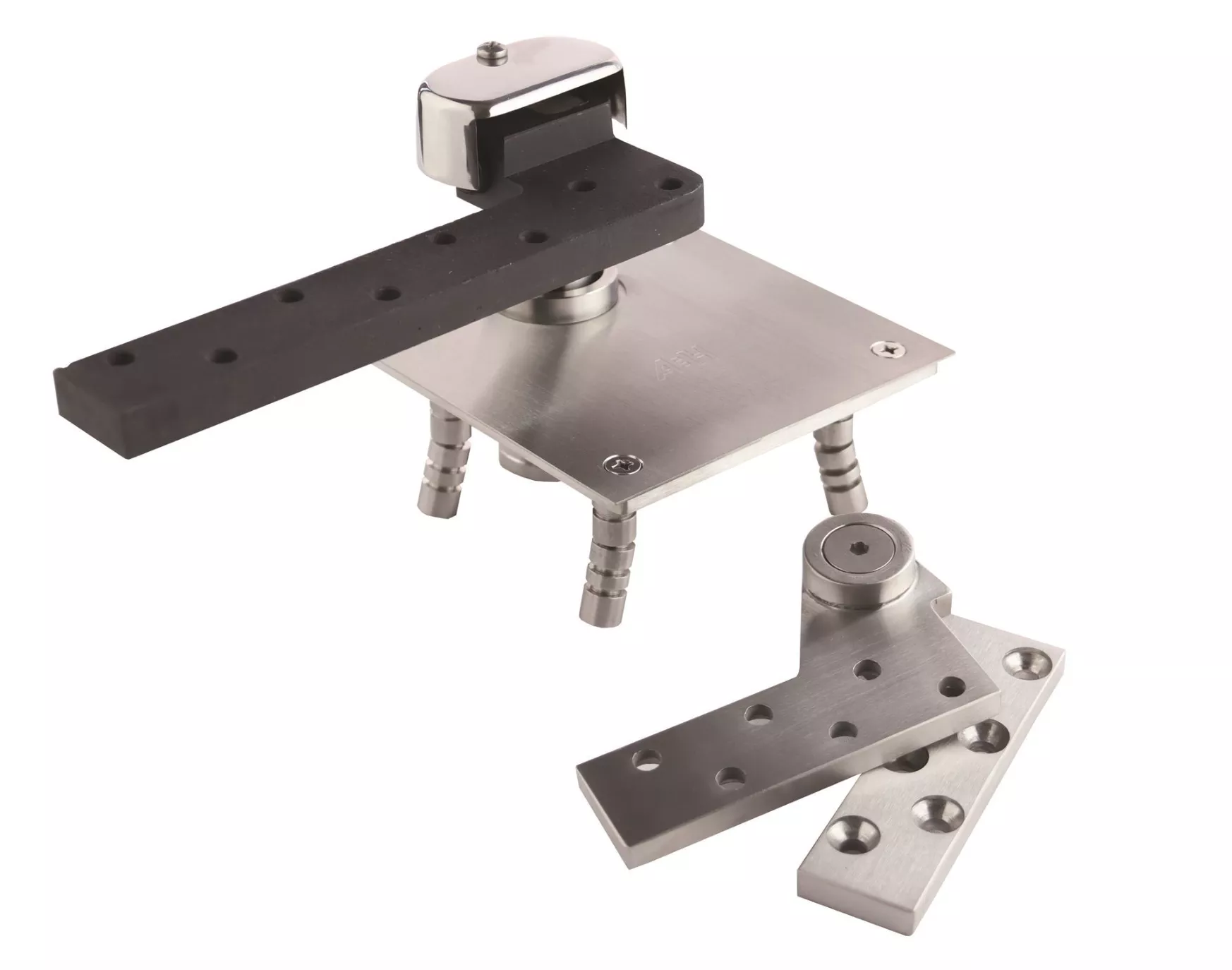

ABH 0117.50 Pivot Set – 3/4″ Offset

• Features:
  • 019 intermediate pivot required (order separately)
  • Handed – Specify LH or RH
  • Maximum door load 650 pounds
  • Maxium door width – 48″
  • UL listed for use on 3-hour fire rated doors – Standard
  • Heavy duty bearings
  • Stainless steel base material
  • Average weight per unit = 9 lbs
  • Doors ranging from 60″ to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30″ in door height.
• Includes:
  • 0180 Top Pivot
    • Frame leaf mortises into header
    • Door leaf mortises into top of door
  • 0117.50B Bottom Pivot
    • Bottom leaf mortises into floor
    • Door leaf mortises into botton of door

• “EXT-SPIN” Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
•  “EXT-PIN” Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
•  “SEC” Fasteners

Cut Sheets

•  0117.50 & L0117 Cut Sheet – 3/4″ Offset Top and Bottom Pivot Set
•  Pivot Set Configurations
