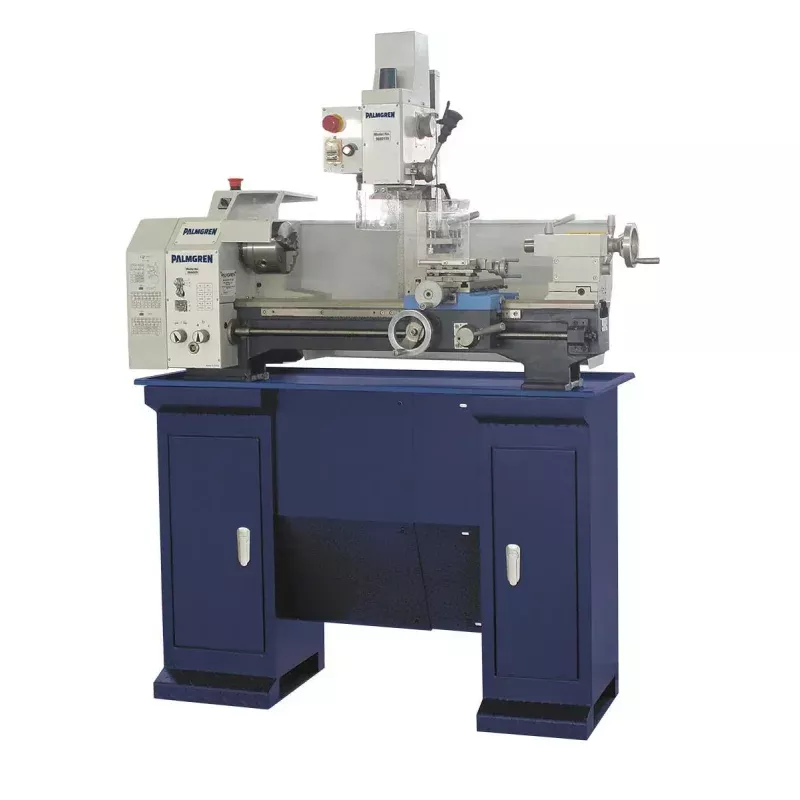

Palmgren’s combination 9″ bench engine lathe and gear head mill delivers the precision, power and versatility to handle a wide range of turning, milling and drilling operations normally found in much larger machines.
Heavy cast iron construction, smooth power transmission with precision thrust and ball bearings in the head stock and spindles, hardened and ground ways all designed to go give you years of trouble-free, precise turning, milling and hole making machining. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100% of available horsepower and torque. With such a wide range of versatility and features, this all-purpose combination lathe/mill is one of the most function manual machine centers that can operate in all types and sizes of shops.
Frequently Bought Together
Follow Rest For 9684504 9″ Lathe
Steel floor stand for 9″, 10″, 11″ and Combo Lathes
Specification
Value
4 Position Tool Post Height
3-3/4″
Bed Width
5-7/8″
Chuck Size
5″
Compound Travel
3-9/16″
Country of Origin
CN
Distance Between Centers
20″
Dist. Btwn. Cntr. & Comp. Tab.
3″
Drilling Capacity in Cast Iron
5/8″
Gear Stages
2
Height Of Center
4-3/4″
High Range
200 – 3000
Lathe Motor
1PH – 115V – 13.6 Amps – 1PH – 60 Hz
Lathes Type
Gear Head
Lathe Weight
452
Longitudinal Feed Rates
0.003″, 0.004″, 0.006″, 0.008, 0.012″, 0.016″
Low Speed
100 – 1500
Max Turning Diameter
9-7/8″
Mill Weight
132
Milling Cap Inserted Tooth Cut
2-1/2″
Milling Cap of End Mill Cutter
3/4″
Motor HP
5/8
Number of Spindle Speeds
6
Overall Dimensions (LxWxH)
33-1/2″ x 49″ x 23″
Phase
Single
Pitch
0.2 – 4 / 8 – 56
Spindle Holding Fixture
MT2 3/8″-16 Draw Bar
Table Dimensions
10″ x 4-3/4″
Spindle Hole
1″
Spindle Travel
2″
Swing Over Bed
9″
Swivel of the Milling Head
90
Tailstock Sleeve Travel
2-1/2″
Tailstock Taper
MT2
Travel Top Slide
19-1/2″
T-Slot Size/Distance/Quantity
5/8″
Voltage
115
Working Radius
6-3/4″
Warranty
3 Year
Z-Axis Travel
10-1/2″
UPC
726896802138
Unit of Measure
Each
Product Height (in)
41
Product Length (in)
54
Product Width (in)
26
Product Weight (lbs)
463
