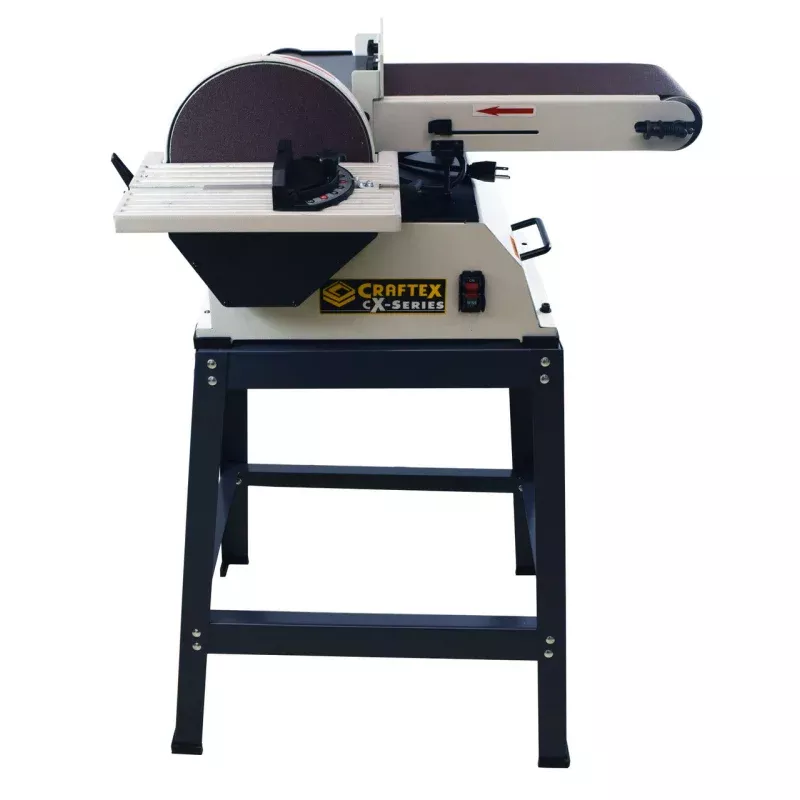

The Craftex CX-Series CX512 Belt and Disc Sander is designed for shaping edges, smoothing surfaces, sanding end grain, and completing a variety of general woodworking tasks. Its 1HP, 120V motor powers both the 6″ x 48″ sanding belt and 9″ sanding disc, providing a practical combination of sanding surfaces in one machine.
The sanding belt tilts from 0 to 90, allowing it to be positioned horizontally, vertically, or at an angle to suit the workpiece. A quick-release belt tensioning and tracking system makes belt adjustments more convenient.
The 9″ sanding disc is paired with a precision-machined aluminum work table measuring 12″ x 6″. The table tilts from 0 to 45 and includes a miter gauge slot for greater control during angled and end-grain sanding.
A heavy-duty steel stand provides a stable working platform, while the 2″ dust port allows connection to a compatible dust collection system. The ON/OFF switch includes a removable locking safety key to help prevent unauthorized use.
Features
-
6″ x 48″ sanding belt
-
9″ sanding disc
-
1HP, 120V, single-phase motor
-
Belt operates horizontally, vertically, or at angles in between
-
Sanding belt tilts from 0 to 90
-
12″ x 6″ precision-machined aluminum work table
-
Work table tilts from 0 to 45
-
Miter gauge slot for controlled sanding
-
Quick-release belt tensioning system
-
Adjustable belt tracking system
-
2″ dust collection port
-
Heavy-duty steel stand
-
ON/OFF switch with removable locking safety key
-
Three-year warranty
Specifications
-
Model: CX512
-
Motor: 1HP, 120V, 60Hz, single phase
-
Amperage: 8A
-
Sanding Disc Diameter: 9″
-
Disc Speed: 2,510 RPM
-
Sanding Belt Size: 6″ x 48″
-
Belt Speed: 1,836 SFPM
-
Work Table Size: 12″ x 6″
-
Work Table Tilt: 0 to 45
-
Sanding Belt Tilt: 0 to 90
-
Dust Port Size: 2″
-
Weight: 39 kg
-
Warranty: Three years
Comes With
-
Precision aluminum sanding table with miter gauge slot
-
9″ sanding disc
-
6″ x 48″ sanding belt
-
Heavy-duty steel stand
-
2″ dust port
-
Safety locking switch
-
Owners manual
FAQ
Can the sanding belt be used vertically and horizontally?
Yes. The belt arm tilts from 0 to 90, allowing the sanding belt to be used horizontally, vertically, or at an angle.
What size sanding belt does the CX512 use?
The CX512 uses a 6″ x 48″ sanding belt.
What size sanding disc does the machine use?
The machine uses a 9″ sanding disc operating at 2,510 RPM.
Does the work table tilt?
Yes. The 12″ x 6″ aluminum work table tilts from 0 to 45.
Can the CX512 be connected to a dust collector?
Yes. It includes a 2″ dust port for connection to a compatible dust collection system.
Does the sander include a stand?
Yes. The CX512 includes a heavy-duty steel stand for added stability during use.
What safety feature is included on the switch?
The ON/OFF switch has a removable locking safety key to help prevent unauthorized use.
What warranty is included?
The CX512 is covered by a three-year warranty.
