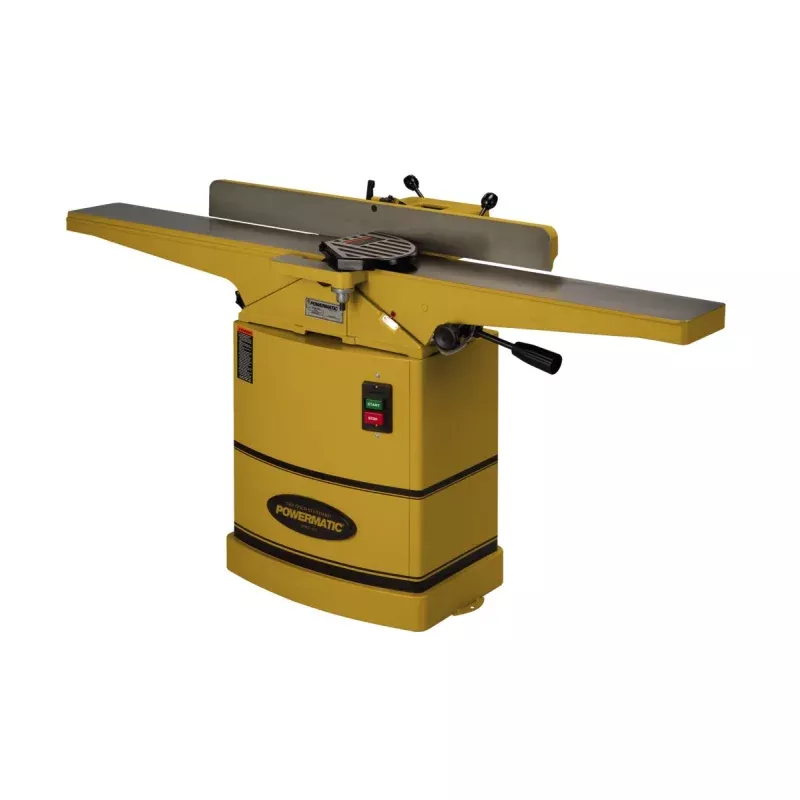

54A Jointer, 1HP 1PH 115/230V

The 6″ Jointer features three auto-set knives that align themselves in the cutterhead for rapid knife changes.

Oversized infeed/outfeed tables are mounted on dovetailed ways and have a built-in rabbeting ledge. The fence is 38″ in length, with positive stops at 90 and 45 right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a powerful motor with a non-slip v-belt drive for maximum performance. The 4″ dust port offers easy connection to any dust collection system.

Features

• 66″ long adjustable infeed and outfeed tables provide more working surface
• Built-in ledge for 1/2″ rabbeting capacity
• Enlarged sheet metal stand provides a sturdy base
• Extra-long 38″ two-way tilting fence with positive stops provides quick positioning for 90 or bevel cuts
• Fence controls are center mounted for convenience
• Fine/quick adjustment lever on infeed table for precision cuts
• Push button switch is lockable to prevent accidental starting
• Cutterhead features three high speed steel auto-set knives that automatically align themselves in the cutterhead

Specifications

More Information Stock Number 1791279DXK Cuts Per Minute 18,000 Cutterhead Diameter (In.) 2-1/2 Cutterhead Speed (RPM) 6000.0000 Cutting Capacity (W x D) (In.) 6 x 1/2 Dust Collection Minimum CFM Required (CFM) 600 Dust Port Outside Diameter (In.) 4 Infeed Table Length (In.) 32-1/2 Motor Amps 13/6.5 Motor Phase 1 Motor Power (HP) 1 Motor Voltage (V.) 115/230 Number of Knives 3 Prewired Voltage (V.) 115 Prop 65 Cancer and Reproductive Harm Rabbeting Capacity (In.) 1/2 Type of Cutterhead Helical Style
