The CX708CHUCK3 is a heavy-duty, 3-jaw self-centering chuck designed for precision clamping in turning applications. With hardened steel jaws and a solid manual operation, this chuck is ideal for metal lathes and general-purpose turning. The self-centering design ensures fast and accurate setup, while interchangeable internal and external jaws offer a wide clamping range for various workpiece sizes.
Features:
-
3-jaw self-centering mechanism for quick and accurate centering
-
Manual operation for full control during setup
-
Short cylindrical center mounting for versatile lathe compatibility
-
Supplied with both internal and external jaws for flexible clamping
-
Made from high-strength, hardened steel for increased durability
-
Suitable for light to medium-duty machining applications
-
Traditional K11-style with reliable two-piece jaw system
Specifications:
-
Chuck type: 3-Jaw Self-Centering
-
Max RPM: 3000 r/min
-
Operation: Manual
-
Jaw material: Hardened steel
-
Mounting: Short cylindrical center mount
-
Jaw type: One-piece internal and external jaws (K11 model)
Clamping Capacities:
-
Internal Jaw Clamping Range (AA1): 2.540 mm
-
Internal Jaw Jamming Range (BB1): 38125 mm
-
External Jaw Clamping Range (CC1): 38110 mm

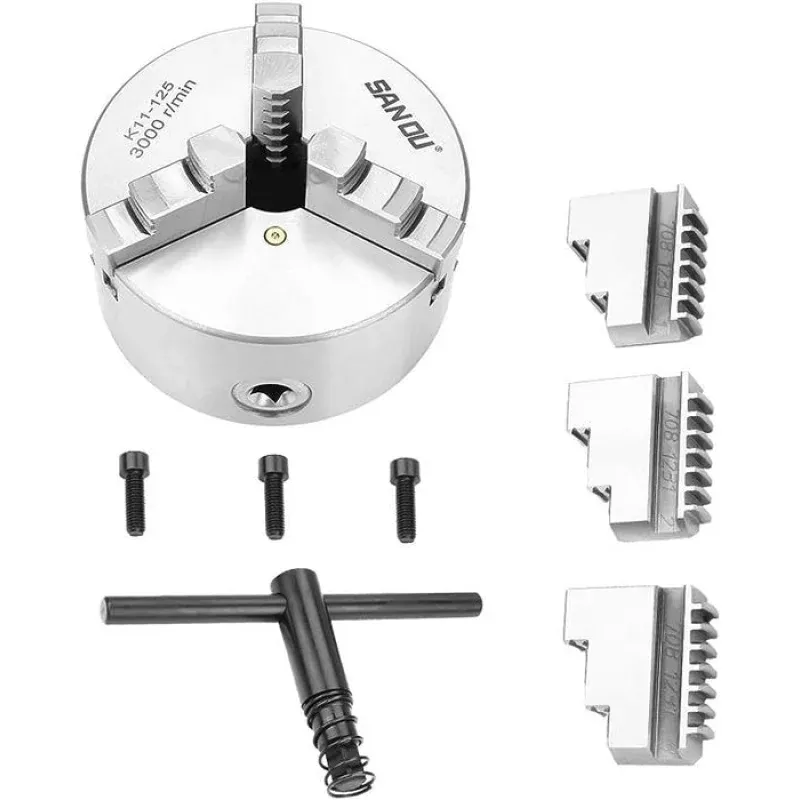

Comes With:
-
1 x Self-centering chuck body
-
3 x Internal jaws (inside jaws)
-
3 x External jaws (outside jaws, large)
-
1 x Safety chuck key
-
3 x Mounting bolts
