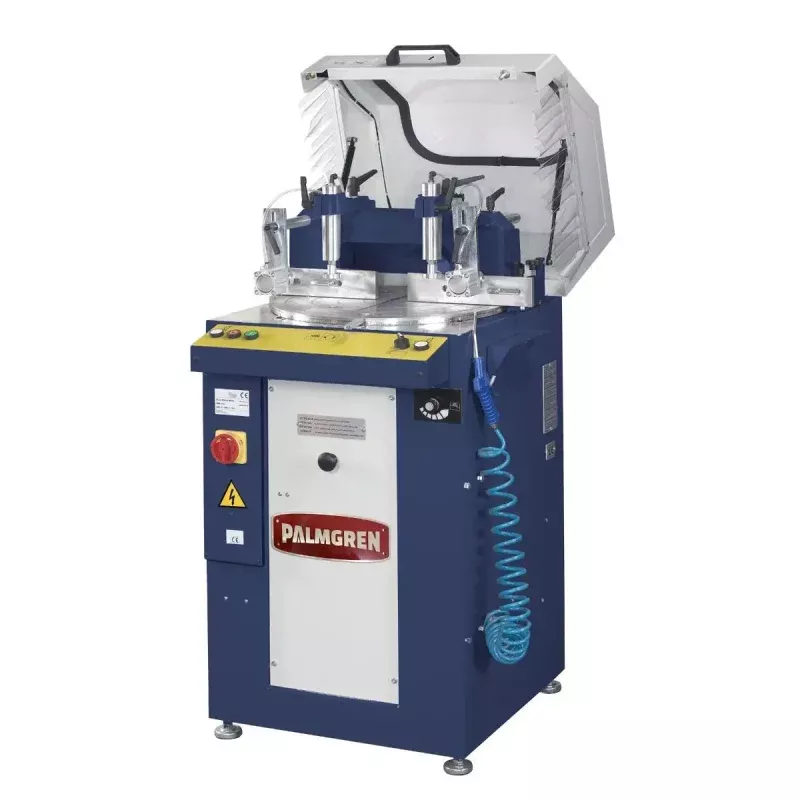

Palmgrens 16 Non-Ferrous Upcut Saw is designed for cutting aluminum, copper, plastic and all other non-ferrous materials.
The upcut design provides larger cutting capacities versus similarly sized pivot style machines. When used with carbide toothed blades, this saw provides a smooth, burr free cut every time.
- Safety hood with safety interlocks
- Adjustable saw blade feed rate
- Two horizontal and two vertical pneumatic clamps hold the workpiece securely in place
- Adjustable leveling pads
- Air hose and nozzle to clean of work area after each cut
| Cold Saw and Band Saw Saw Type |
Manual |
| Country of Origin |
TW |
| Cutting Angle |
0/60 |
| Cutting Angle Adjustment |
Manual |
| Feed |
Air/Hydraulic |
| Machine Weight |
396 |
| Motor HP |
2 |
| Overall Dimensions (LxWxH) |
26-3/4″ x 31-1/2″ x 55-1/8″ |
| Phase |
Three |
| Rectangle 0? |
2-3/8″ x 7-7/8″ |
| Rectangle 60? |
2-3/8″ x 5-1/2″ |
| Round @ 45 Degrees |
4 |
| Round Material Max. 0 Degrees |
4-3/8″ |
| Round Material Max. 60 Degrees |
4″ |
| Saw Blade Diameter |
16″ |
| Sawing Type |
Vertical Band Saws |
| Voltage |
230 |
| Warranty |
3 Year |
| UPC |
726896831527 |
| Unit of Measure |
EA |
| Product Height (in) |
56.7 |
| Product Length (in) |
29.5 |
| Product Width (in) |
39.4 |
| Product Weight (lbs) |
462 |
