11463 Tie Rod Cylinder 4×48

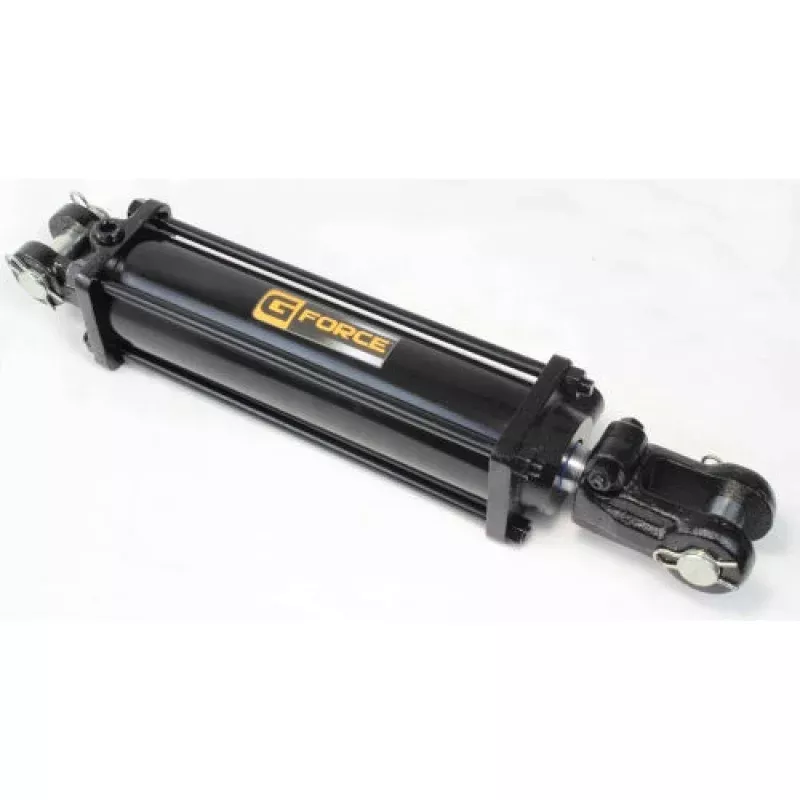

11463 4″ Bore, 48″ Stroke, Tie Rod Hydraulic Cylinder

• Designed for double acting applications
• Standard black color
• All seals manufactured to US specification
• 100% Hydro-pressure test
• Chrome plated rod surface treatment

Bore x Stroke

(inch)

Shaft Diam,

(inches)

Center to Center of Pin

(Retracted, inches)

Center to Center of Pin

(Extended, inches)

Ports

(NPTF)

Port Thread

(SAE)

Weight

(lbs)

Rated Pressure

(psi)

Max. Pressure

(psi)

4X48 2 58 1/4 106 1/4 1/2″ NPTF 150 2500 3850

Dimensional Data in Inches

A B C E G H I J M P Q R S T V W 10.25 0.244 1/2″ NPTF 2.625 2.625 1.125 1.125 2.125 2 16 1.250″-12 UNF 1 2.250 2.250 4.920 4.920
