10-15″ Wedge Type BXA Tool Post Set
10pc Set

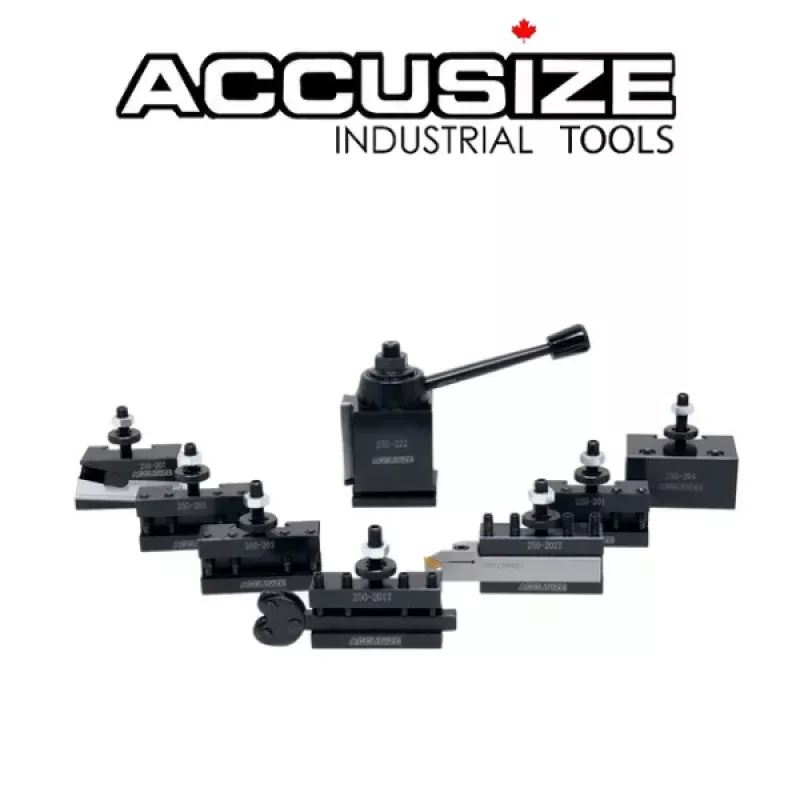

Each set consist of 1 Wedge type tool post, 8 toolholders, 1 knurling tool & 1 grooving/cut-off holder:
- 1 x Wedge Style Quick Change Tool Post (0252-0111)
- 2 x Style 1: Turning & Facing (0250-0101)
- 1 x Style 1: Oversize Turning & Facing (0250-0101T)
- 1 x Style 2: Boring, Turning & Facing (0250-0202)
- 1 x Style 2: Oversize Boring, Turning & Facing (0250-0202T)
- 1 x Style 4: Boring, Heavy-duty (0250-0204)
- 1 x Style 7: Universal Parting Blade Holder (0250-0207)
- 1 x Two-Wheel Knurling Tool (0250-1740)
- Dimension of tool: 4″ x 1/2″ x 1/2″; Knurls 3/4″ (Dia), 1/4″ (face), 1/4″ (hole)
- 1 x 1/2″ Shank Cut-off Tool w/ 1 x GTN-2 Insert Installed (2415-5030)
Interchangeable withAloris, Phase II, Dorian, Yuasa
Suitable for lathe center height 0.60 – 1.75″ ( top compound surface to lathe centerline), such as:
- South Bend13″ , 14″ & 1307
- Harrison: 11, 12 & 13″
- Clausing: 1300 series
- Delta14″
- Logan14″
- Emco: Elnomat 13S
- Sheldon: 11 & 13″
- Monarch: 13
- Nardini: MS1400 MS1600
- Acer: 1340
- Emco:Elnomat13S
All parts are hardened, ground, and completely sealed for maintenance-free operation. Quick change QC tool post sets advanced design provides built-in quick tool changing versatility with positive rigidity to meet the most exacting working tolerances. Quickly and easily installed on an engine bench or turret lathe quick change QC tool post sets perform a wide range of operations from fine precise work to heavy-duty cutting. Maximum rigidity for chatter-free performance. Quick change QC tool post sets are interchangeable with all industry-leading brands by series
10/24
Accusize Pt 0251-0119
